Documentation for CLIP - BIM - XML open interoperable format
Definition Type: Element
Name: Stretch
Type: StretchType
Containing Schema: 0_COMPLETO_ENG.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
Datos referentes a la definición de un tramo.

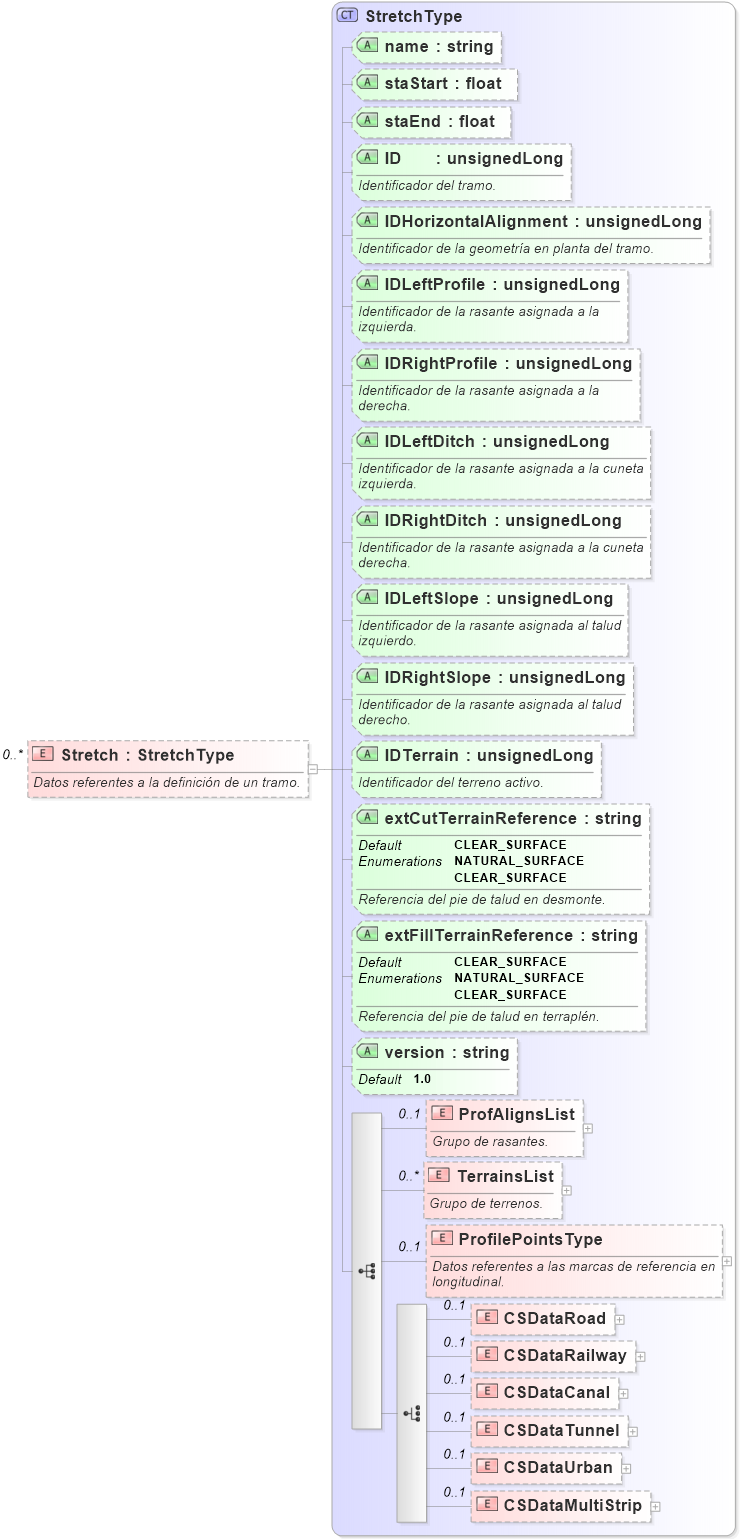

Collapse XSD Schema Diagram:
Drilldown into CSDataMultiStrip Drilldown into CSDataUrban Drilldown into CSDataTunnel Drilldown into CSDataCanal Drilldown into CSDataRailway Drilldown into CSDataRoad Drilldown into ProfilePointsType Drilldown into TerrainsList Drilldown into ProfAlignsList Drilldown into version Drilldown into extFillTerrainReference Drilldown into extCutTerrainReference Drilldown into IDTerrain Drilldown into IDRightSlope Drilldown into IDLeftSlope Drilldown into IDRightDitch Drilldown into IDLeftDitch Drilldown into IDRightProfile Drilldown into IDLeftProfile Drilldown into IDHorizontalAlignment Drilldown into ID Drilldown into staEnd Drilldown into staStart Drilldown into name Drilldown into StretchTypeXSD Diagram of Stretch
Collapse XSD Schema Code:
<xs:element name="Stretch" type="StretchType" minOccurs="0" maxOccurs="unbounded">
    <xs:annotation>
        <xs:documentation>Datos referentes a la definición de un tramo.</xs:documentation>
    </xs:annotation>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ProfAlignsList ProfAlignsList 0 1
TerrainsList TerrainsList 0 unbounded
ProfilePointsType ProfilePointsType 0 1
CSDataRoad CSDataRoad 0 1
CSDataRailway CSDataRailway 0 1
CSDataCanal CSDataCanal 0 1
CSDataTunnel CSDataTunnel 0 1
CSDataUrban CSDataUrban 0 1
CSDataMultiStrip CSDataMultiStrip 0 1
Collapse Child Attributes:
Name Type Default Value Use
name name (Optional)
staStart staStart (Optional)
staEnd staEnd (Optional)
ID ID (Optional)
IDHorizontalAlignment IDHorizontalAlignment (Optional)
IDLeftProfile IDLeftProfile (Optional)
IDRightProfile IDRightProfile (Optional)
IDLeftDitch IDLeftDitch (Optional)
IDRightDitch IDRightDitch (Optional)
IDLeftSlope IDLeftSlope (Optional)
IDRightSlope IDRightSlope (Optional)
IDTerrain IDTerrain (Optional)
extCutTerrainReference extCutTerrainReference CLEAR_SURFACE (Optional)
extFillTerrainReference extFillTerrainReference CLEAR_SURFACE (Optional)
version version 1.0 (Optional)
Collapse Derivation Tree:
