Definition Type: Element
Name: UrbanPaveLayer
Containing Schema: 0_COMPLETO_ENG.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
Factores de definición de la capa que componen el firme.

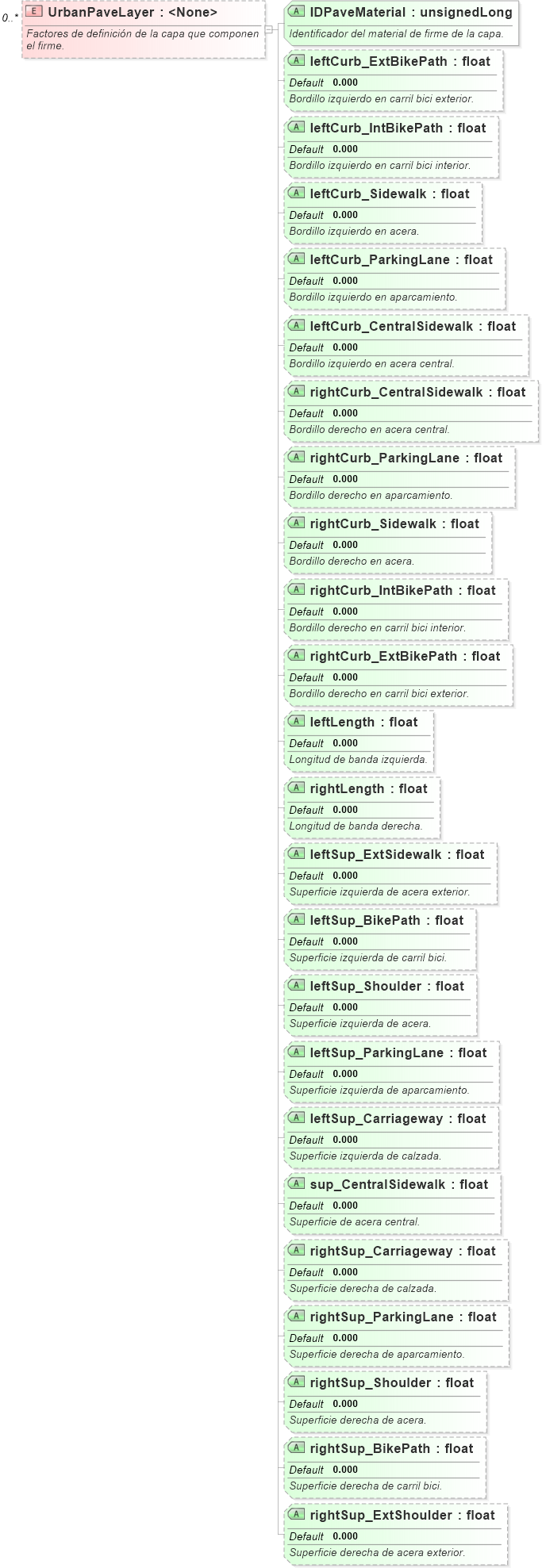

Collapse XSD Schema Diagram:
Drilldown into rightSup_ExtShoulder Drilldown into rightSup_BikePath Drilldown into rightSup_Shoulder Drilldown into rightSup_ParkingLane Drilldown into rightSup_Carriageway Drilldown into sup_CentralSidewalk Drilldown into leftSup_Carriageway Drilldown into leftSup_ParkingLane Drilldown into leftSup_Shoulder Drilldown into leftSup_BikePath Drilldown into leftSup_ExtSidewalk Drilldown into rightLength Drilldown into leftLength Drilldown into rightCurb_ExtBikePath Drilldown into rightCurb_IntBikePath Drilldown into rightCurb_Sidewalk Drilldown into rightCurb_ParkingLane Drilldown into rightCurb_CentralSidewalk Drilldown into leftCurb_CentralSidewalk Drilldown into leftCurb_ParkingLane Drilldown into leftCurb_Sidewalk Drilldown into leftCurb_IntBikePath Drilldown into leftCurb_ExtBikePath Drilldown into IDPaveMaterialXSD Diagram of UrbanPaveLayer
Collapse XSD Schema Code:
<xs:element name="UrbanPaveLayer" minOccurs="0" maxOccurs="unbounded">
    <xs:annotation>
        <xs:documentation>Factores de definición de la capa que componen el firme.</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:attribute name="IDPaveMaterial" type="xs:unsignedLong" use="required">
            <xs:annotation>
                <xs:documentation>Identificador del material de firme de la capa.</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="leftCurb_ExtBikePath" default="0.000" type="xs:float">
            <xs:annotation>
                <xs:documentation>Bordillo izquierdo en carril bici exterior.</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="leftCurb_IntBikePath" default="0.000" type="xs:float">
            <xs:annotation>
                <xs:documentation>Bordillo izquierdo en carril bici interior.</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="leftCurb_Sidewalk" default="0.000" type="xs:float">
            <xs:annotation>
                <xs:documentation>Bordillo izquierdo en acera.</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="leftCurb_ParkingLane" default="0.000" type="xs:float">
            <xs:annotation>
                <xs:documentation>Bordillo izquierdo en aparcamiento.</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="leftCurb_CentralSidewalk" default="0.000" type="xs:float">
            <xs:annotation>
                <xs:documentation>Bordillo izquierdo en acera central.</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="rightCurb_CentralSidewalk" default="0.000" type="xs:float">
            <xs:annotation>
                <xs:documentation>Bordillo derecho en acera central.</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="rightCurb_ParkingLane" default="0.000" type="xs:float">
            <xs:annotation>
                <xs:documentation>Bordillo derecho en aparcamiento.</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="rightCurb_Sidewalk" default="0.000" type="xs:float">
            <xs:annotation>
                <xs:documentation>Bordillo derecho en acera.</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="rightCurb_IntBikePath" default="0.000" type="xs:float">
            <xs:annotation>
                <xs:documentation>Bordillo derecho en carril bici interior.</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="rightCurb_ExtBikePath" default="0.000" type="xs:float">
            <xs:annotation>
                <xs:documentation>Bordillo derecho en carril bici exterior.</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="leftLength" default="0.000" type="xs:float">
            <xs:annotation>
                <xs:documentation>Longitud de banda izquierda.</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="rightLength" default="0.000" type="xs:float">
            <xs:annotation>
                <xs:documentation>Longitud de banda derecha.</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="leftSup_ExtSidewalk" default="0.000" type="xs:float">
            <xs:annotation>
                <xs:documentation>Superficie izquierda de acera exterior.</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="leftSup_BikePath" default="0.000" type="xs:float">
            <xs:annotation>
                <xs:documentation>Superficie izquierda de carril bici.</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="leftSup_Shoulder" default="0.000" type="xs:float">
            <xs:annotation>
                <xs:documentation>Superficie izquierda de acera.</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="leftSup_ParkingLane" default="0.000" type="xs:float">
            <xs:annotation>
                <xs:documentation>Superficie izquierda de aparcamiento.</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="leftSup_Carriageway" default="0.000" type="xs:float">
            <xs:annotation>
                <xs:documentation>Superficie izquierda de calzada.</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="sup_CentralSidewalk" default="0.000" type="xs:float">
            <xs:annotation>
                <xs:documentation>Superficie de acera central.</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="rightSup_Carriageway" default="0.000" type="xs:float">
            <xs:annotation>
                <xs:documentation>Superficie derecha de calzada.</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="rightSup_ParkingLane" default="0.000" type="xs:float">
            <xs:annotation>
                <xs:documentation>Superficie derecha de aparcamiento.</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="rightSup_Shoulder" default="0.000" type="xs:float">
            <xs:annotation>
                <xs:documentation>Superficie derecha de acera.</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="rightSup_BikePath" default="0.000" type="xs:float">
            <xs:annotation>
                <xs:documentation>Superficie derecha de carril bici.</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="rightSup_ExtShoulder" default="0.000" type="xs:float">
            <xs:annotation>
                <xs:documentation>Superficie derecha de acera exterior.</xs:documentation>
            </xs:annotation>
        </xs:attribute>
    </xs:complexType>
</xs:element>
Collapse Child Attributes:
Name Type Default Value Use
IDPaveMaterial IDPaveMaterial Required
leftCurb_ExtBikePath leftCurb_ExtBikePath 0.000 (Optional)
leftCurb_IntBikePath leftCurb_IntBikePath 0.000 (Optional)
leftCurb_Sidewalk leftCurb_Sidewalk 0.000 (Optional)
leftCurb_ParkingLane leftCurb_ParkingLane 0.000 (Optional)
leftCurb_CentralSidewalk leftCurb_CentralSidewalk 0.000 (Optional)
rightCurb_CentralSidewalk rightCurb_CentralSidewalk 0.000 (Optional)
rightCurb_ParkingLane rightCurb_ParkingLane 0.000 (Optional)
rightCurb_Sidewalk rightCurb_Sidewalk 0.000 (Optional)
rightCurb_IntBikePath rightCurb_IntBikePath 0.000 (Optional)
rightCurb_ExtBikePath rightCurb_ExtBikePath 0.000 (Optional)
leftLength leftLength 0.000 (Optional)
rightLength rightLength 0.000 (Optional)
leftSup_ExtSidewalk leftSup_ExtSidewalk 0.000 (Optional)
leftSup_BikePath leftSup_BikePath 0.000 (Optional)
leftSup_Shoulder leftSup_Shoulder 0.000 (Optional)
leftSup_ParkingLane leftSup_ParkingLane 0.000 (Optional)
leftSup_Carriageway leftSup_Carriageway 0.000 (Optional)
sup_CentralSidewalk sup_CentralSidewalk 0.000 (Optional)
rightSup_Carriageway rightSup_Carriageway 0.000 (Optional)
rightSup_ParkingLane rightSup_ParkingLane 0.000 (Optional)
rightSup_Shoulder rightSup_Shoulder 0.000 (Optional)
rightSup_BikePath rightSup_BikePath 0.000 (Optional)
rightSup_ExtShoulder rightSup_ExtShoulder 0.000 (Optional)
