Definition Type: Element
Name: TrackData
Containing Schema: 0_COMPLETO_ENG.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract

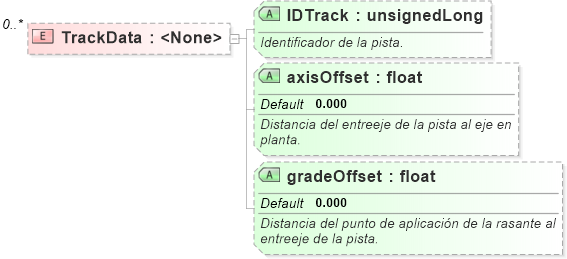

Collapse XSD Schema Diagram:
Drilldown into gradeOffset Drilldown into axisOffset Drilldown into IDTrackXSD Diagram of TrackData
Collapse XSD Schema Code:
<xs:element name="TrackData" minOccurs="0" maxOccurs="unbounded">
    <xs:complexType>
        <xs:attribute name="IDTrack" type="xs:unsignedLong">
            <xs:annotation>
                <xs:documentation>Identificador de la pista.</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="axisOffset" default="0.000" type="xs:float">
            <xs:annotation>
                <xs:documentation>Distancia del entreeje de la pista al eje en planta.</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="gradeOffset" default="0.000" type="xs:float">
            <xs:annotation>
                <xs:documentation>Distancia del punto de aplicación de la rasante al entreeje de la pista.</xs:documentation>
            </xs:annotation>
        </xs:attribute>
    </xs:complexType>
</xs:element>
Collapse Child Attributes:
Name Type Default Value Use
IDTrack IDTrack (Optional)
axisOffset axisOffset 0.000 (Optional)
gradeOffset gradeOffset 0.000 (Optional)
