Documentation for CLIP - BIM - XML open interoperable format
Definition Type: Element
Name: TerrainsList
Containing Schema: 0_COMPLETO_ENG.xsd
Abstract
Documentation:
Grupo de terrenos.

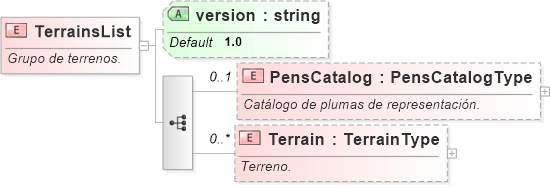

Collapse XSD Schema Diagram:
Drilldown into Terrain Drilldown into PensCatalog Drilldown into versionXSD Diagram of TerrainsList
Collapse XSD Schema Code:
<xs:element name="TerrainsList">
    <xs:annotation>
        <xs:documentation>Grupo de terrenos.</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:sequence>
            <xs:element name="PensCatalog" type="PensCatalogType" minOccurs="0" maxOccurs="1">
                <xs:annotation>
                    <xs:documentation>Catálogo de plumas de representación.</xs:documentation>
                </xs:annotation>
            </xs:element>
            <xs:element name="Terrain" type="TerrainType" minOccurs="0" maxOccurs="unbounded">
                <xs:annotation>
                    <xs:documentation>Terreno.</xs:documentation>
                </xs:annotation>
            </xs:element>
        </xs:sequence>
        <xs:attribute name="version" default="1.0" type="xs:string" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PensCatalog PensCatalog 0 1
Terrain Terrain 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
version version 1.0 (Optional)
