Documentation for CLIP - BIM - XML open interoperable format
Definition Type: Element
Name: Terrain
Type: TerrainType
Containing Schema: 0_COMPLETO_ENG.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract

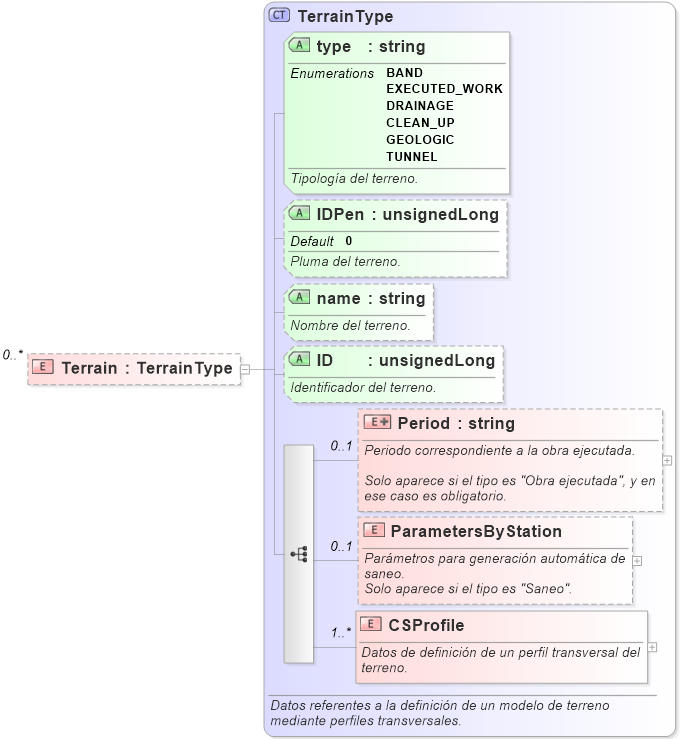

Collapse XSD Schema Diagram:
Drilldown into CSProfile Drilldown into ParametersByStation Drilldown into Period Drilldown into ID Drilldown into name Drilldown into IDPen Drilldown into type Drilldown into TerrainTypeXSD Diagram of Terrain
Collapse XSD Schema Code:
<xs:element name="Terrain" type="TerrainType" minOccurs="0" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Period Period 0 1
ParametersByStation ParametersByStation 0 1
CSProfile CSProfile 1 unbounded
Collapse Child Attributes:
Name Type Default Value Use
type type Required
IDPen IDPen 0 (Optional)
name name (Optional)
ID ID (Optional)
Collapse Derivation Tree:
