Definition Type: Element
Name: SleeperCatalog
Containing Schema: 0_COMPLETO_ENG.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
Traviesa de catálogo.
INFO++ http://www.tool.es/_web/DOC/CLIP/DLG_CatalogoTraviesas.html ++INFO

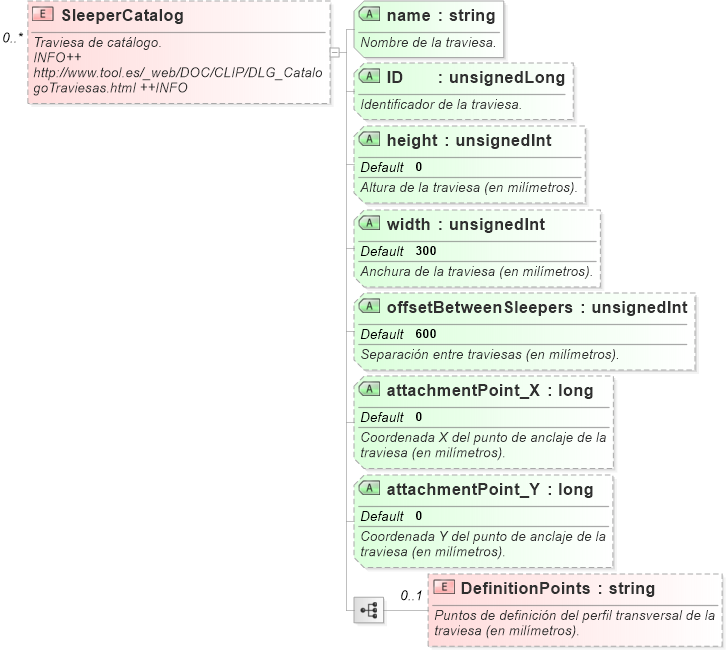

Collapse XSD Schema Diagram:
Drilldown into DefinitionPoints Drilldown into attachmentPoint_Y Drilldown into attachmentPoint_X Drilldown into offsetBetweenSleepers Drilldown into width Drilldown into height Drilldown into ID Drilldown into nameXSD Diagram of SleeperCatalog
Collapse XSD Schema Code:
<xs:element name="SleeperCatalog" minOccurs="0" maxOccurs="unbounded">
    <xs:annotation>
        <xs:documentation>Traviesa de catálogo.</xs:documentation>
        <xs:documentation>INFO++ http://www.tool.es/_web/DOC/CLIP/DLG_CatalogoTraviesas.html ++INFO</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:sequence>
            <xs:element name="DefinitionPoints" type="xs:string" minOccurs="0" maxOccurs="1">
                <xs:annotation>
                    <xs:documentation>Puntos de definición del perfil transversal de la traviesa (en milímetros).</xs:documentation>
                </xs:annotation>
            </xs:element>
        </xs:sequence>
        <xs:attribute name="name" type="xs:string" use="required">
            <xs:annotation>
                <xs:documentation>Nombre de la traviesa.</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="ID" type="xs:unsignedLong">
            <xs:annotation>
                <xs:documentation>Identificador de la traviesa.</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="height" default="0" type="xs:unsignedInt">
            <xs:annotation>
                <xs:documentation>Altura de la traviesa (en milímetros).</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="width" default="300" type="xs:unsignedInt">
            <xs:annotation>
                <xs:documentation>Anchura de la traviesa (en milímetros).</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="offsetBetweenSleepers" default="600" type="xs:unsignedInt">
            <xs:annotation>
                <xs:documentation>Separación entre traviesas (en milímetros).</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="attachmentPoint_X" default="0" type="xs:long">
            <xs:annotation>
                <xs:documentation>Coordenada X del punto de anclaje de la traviesa (en milímetros).</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="attachmentPoint_Y" default="0" type="xs:long">
            <xs:annotation>
                <xs:documentation>Coordenada Y del punto de anclaje de la traviesa (en milímetros).</xs:documentation>
            </xs:annotation>
        </xs:attribute>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DefinitionPoints DefinitionPoints 0 1
Collapse Child Attributes:
Name Type Default Value Use
name name Required
ID ID (Optional)
height height 0 (Optional)
width width 300 (Optional)
offsetBetweenSleepers offsetBetweenSleepers 600 (Optional)
attachmentPoint_X attachmentPoint_X 0 (Optional)
attachmentPoint_Y attachmentPoint_Y 0 (Optional)
