Documentation for CLIP - BIM - XML open interoperable format
Definition Type: Element
Name: ProfilePoint
Type: ProfilePointType
Containing Schema: 0_COMPLETO_ENG.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
Datos de una marca de referencia en longitudinal.

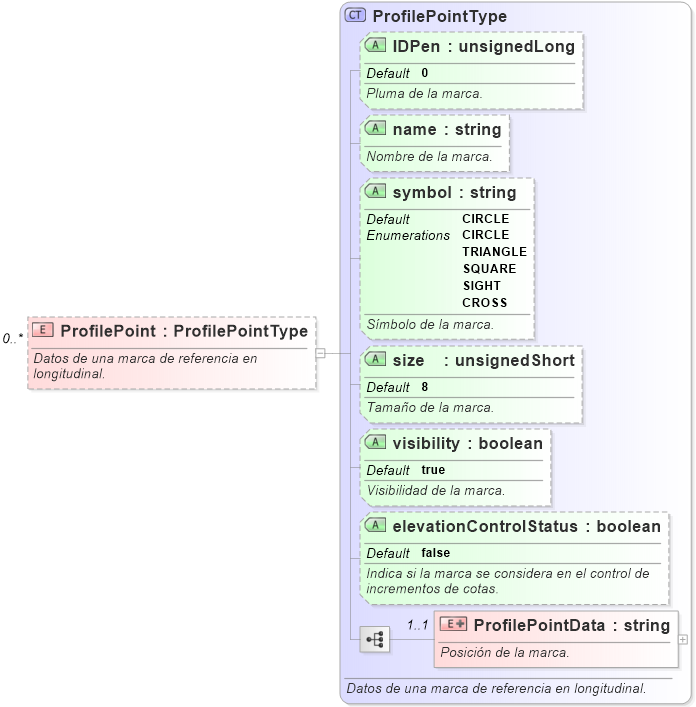

Collapse XSD Schema Diagram:
Drilldown into ProfilePointData Drilldown into elevationControlStatus Drilldown into visibility Drilldown into size Drilldown into symbol Drilldown into name Drilldown into IDPen Drilldown into ProfilePointTypeXSD Diagram of ProfilePoint
Collapse XSD Schema Code:
<xs:element name="ProfilePoint" type="ProfilePointType" minOccurs="0" maxOccurs="unbounded">
    <xs:annotation>
        <xs:documentation>Datos de una marca de referencia en longitudinal.</xs:documentation>
    </xs:annotation>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ProfilePointData ProfilePointData 1 1
Collapse Child Attributes:
Name Type Default Value Use
IDPen IDPen 0 (Optional)
name name (Optional)
symbol symbol CIRCLE (Optional)
size size 8 (Optional)
visibility visibility true (Optional)
elevationControlStatus elevationControlStatus false (Optional)
Collapse Derivation Tree:
