Definition Type: Element
Name: ProfAlign
Type: ProfAlignType
Containing Schema: 0_COMPLETO_ENG.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
Rasante.

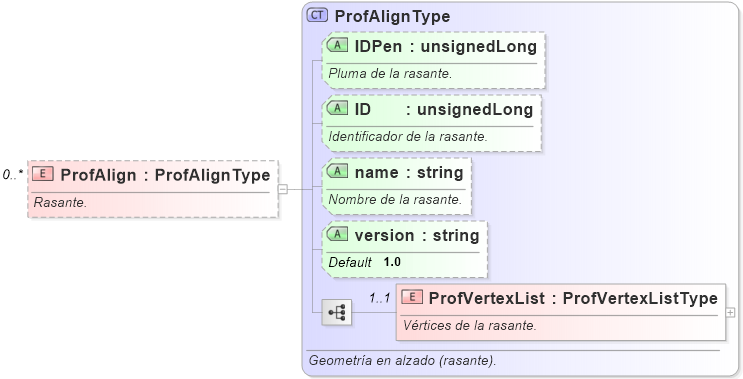

Collapse XSD Schema Diagram:
Drilldown into ProfVertexList Drilldown into version Drilldown into name Drilldown into ID Drilldown into IDPen Drilldown into ProfAlignTypeXSD Diagram of ProfAlign
Collapse XSD Schema Code:
<xs:element name="ProfAlign" type="ProfAlignType" minOccurs="0" maxOccurs="unbounded">
    <xs:annotation>
        <xs:documentation>Rasante.</xs:documentation>
    </xs:annotation>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ProfVertexList ProfVertexList 1 1
Collapse Child Attributes:
Name Type Default Value Use
IDPen IDPen (Optional)
ID ID (Optional)
name name (Optional)
version version 1.0 (Optional)
Collapse Derivation Tree:
