Documentation for CLIP - BIM - XML open interoperable format
Definition Type: Element
Name: PlanPoint
Type: PlanPointType
Containing Schema: 0_COMPLETO_ENG.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
Bases de planta.

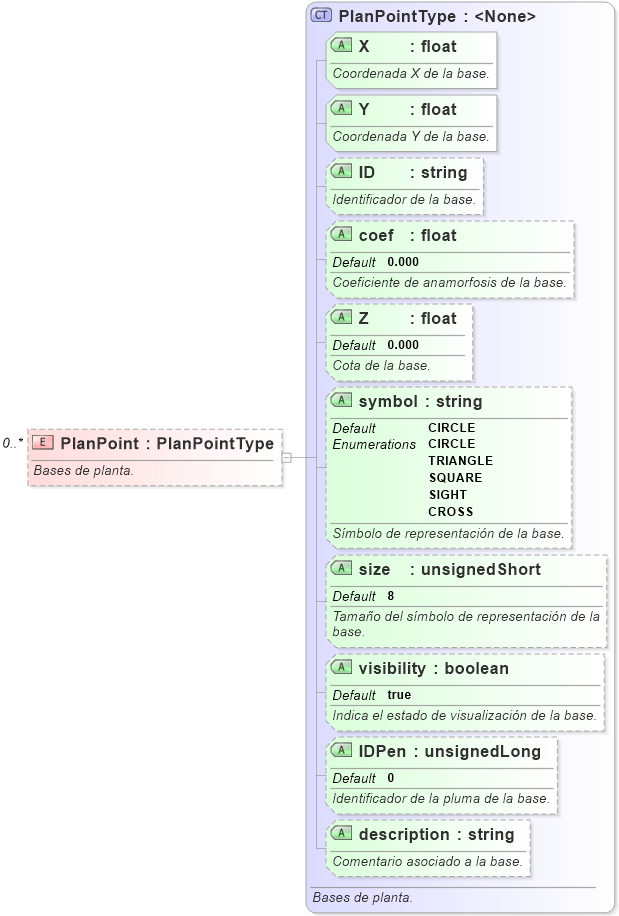

Collapse XSD Schema Diagram:
Drilldown into description Drilldown into IDPen Drilldown into visibility Drilldown into size Drilldown into symbol Drilldown into Z Drilldown into coef Drilldown into ID Drilldown into Y Drilldown into X Drilldown into PlanPointTypeXSD Diagram of PlanPoint
Collapse XSD Schema Code:
<xs:element name="PlanPoint" type="PlanPointType" minOccurs="0" maxOccurs="unbounded">
    <xs:annotation>
        <xs:documentation>Bases de planta.</xs:documentation>
    </xs:annotation>
</xs:element>
Collapse Child Attributes:
Name Type Default Value Use
X X Required
Y Y Required
ID ID (Optional)
coef coef 0.000 (Optional)
Z Z 0.000 (Optional)
symbol symbol CIRCLE (Optional)
size size 8 (Optional)
visibility visibility true (Optional)
IDPen IDPen 0 (Optional)
description description (Optional)
Collapse Derivation Tree:
