Documentation for CLIP - BIM - XML open interoperable format
Definition Type: Element
Name: MS_StripsAxisOffsetsCSData
Type: MS_StripsAxisOffsetsCSDataType
Containing Schema: 0_COMPLETO_ENG.xsd
MinOccurs 1
MaxOccurs 1
Abstract
Documentation:
Datos de sección transversal de  distancias de eje y rasante de pistas de tramos multipista.

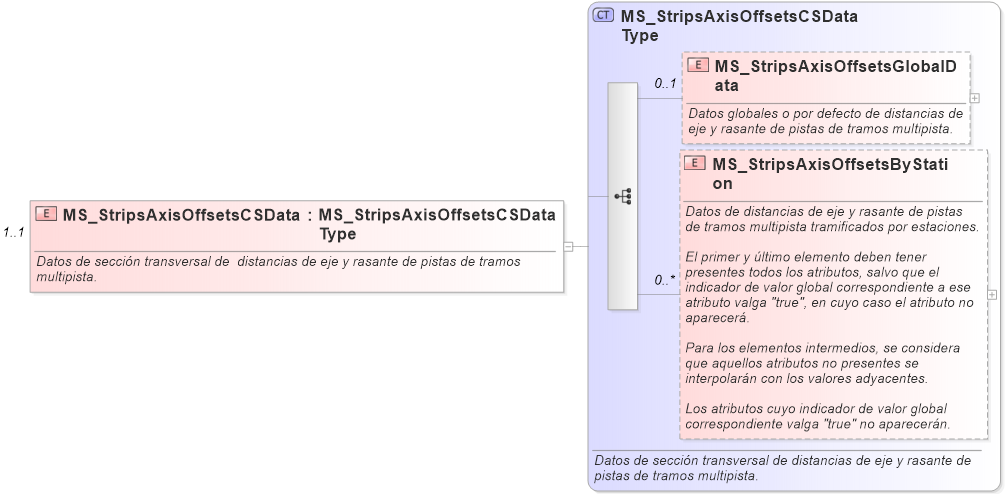

Collapse XSD Schema Diagram:
Drilldown into MS_StripsAxisOffsetsByStation Drilldown into MS_StripsAxisOffsetsGlobalData Drilldown into MS_StripsAxisOffsetsCSDataTypeXSD Diagram of MS_StripsAxisOffsetsCSData
Collapse XSD Schema Code:
<xs:element name="MS_StripsAxisOffsetsCSData" type="MS_StripsAxisOffsetsCSDataType" minOccurs="1" maxOccurs="1">
    <xs:annotation>
        <xs:documentation>Datos de sección transversal de  distancias de eje y rasante de pistas de tramos multipista.</xs:documentation>
    </xs:annotation>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
MS_StripsAxisOffsetsGlobalData MS_StripsAxisOffsetsGlobalData 0 1
MS_StripsAxisOffsetsByStation MS_StripsAxisOffsetsByStation 0 unbounded
Collapse Derivation Tree:
