Documentation for CLIP - BIM - XML open interoperable format
Definition Type: Element
Name: MS_StripCSData
Type: MS_StripCSDataType
Containing Schema: 0_COMPLETO_ENG.xsd
MinOccurs 0
MaxOccurs 1
Abstract
Documentation:
Datos de sección transversal de una banda de una pista de tramos multipista.

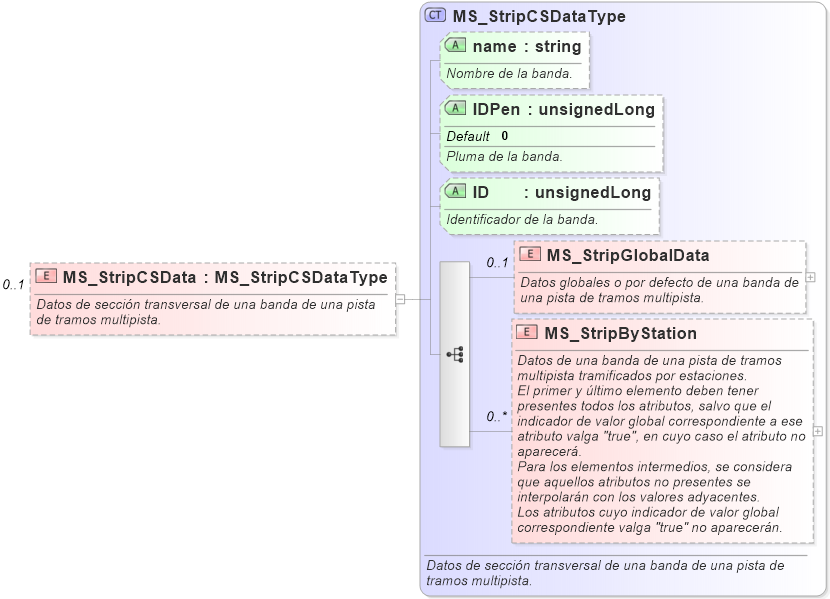

Collapse XSD Schema Diagram:
Drilldown into MS_StripByStation Drilldown into MS_StripGlobalData Drilldown into ID Drilldown into IDPen Drilldown into name Drilldown into MS_StripCSDataTypeXSD Diagram of MS_StripCSData
Collapse XSD Schema Code:
<xs:element name="MS_StripCSData" type="MS_StripCSDataType" minOccurs="0" maxOccurs="1">
    <xs:annotation>
        <xs:documentation>Datos de sección transversal de una banda de una pista de tramos multipista.</xs:documentation>
    </xs:annotation>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
MS_StripGlobalData MS_StripGlobalData 0 1
MS_StripByStation MS_StripByStation 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
name name (Optional)
IDPen IDPen 0 (Optional)
ID ID (Optional)
Collapse Derivation Tree:
