<xs:element name="IFCObjects">
<xs:annotation>
<xs:documentation>Definición de objetos para exportación a formato IFC.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:sequence>
<xs:element name="IFCObject" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Objeto IFC.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:sequence>
<xs:element name="IFCPropertySet" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Propiedades de un objeto.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:sequence>
<xs:element name="IFCPropertySingleValue" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Valor de la propiedad IFC.</xs:documentation>
<xs:documentation />
<xs:documentation>Sólo aplicable si la propiedad IFC es de type="GENERALDATA". El valor puede ser uno de los siguientes:</xs:documentation>
<xs:documentation>- STA_START</xs:documentation>
<xs:documentation>- STA_END</xs:documentation>
<xs:documentation>- STA_START_PROCESSED</xs:documentation>
<xs:documentation>- STA_END_PROCESSED</xs:documentation>
<xs:documentation>- PROJECT_NAME</xs:documentation>
<xs:documentation>- GROUP_OF_STRETCHES_NAME</xs:documentation>
<xs:documentation>- AXIS_NAME</xs:documentation>
<xs:documentation>- STRETCH_NAME</xs:documentation>
<xs:documentation />
</xs:annotation>
<xs:complexType>
<xs:simpleContent>
<xs:extension base="xs:string">
<xs:attribute name="name" type="xs:string" use="required">
<xs:annotation>
<xs:documentation>Nombre de la propiedad IFC.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="type" default="VOLUME">
<xs:annotation>
<xs:documentation>Tipología de la propiedad.</xs:documentation>
</xs:annotation>
<xs:simpleType>
<xs:restriction base="xs:string">
<xs:enumeration value="LENGTH" />
<xs:enumeration value="AREA" />
<xs:enumeration value="VOLUME" />
<xs:enumeration value="BOOLEAN" />
<xs:enumeration value="TEXT" />
<xs:enumeration value="GENERALDATA" />
<xs:enumeration value="OBJECTVOLUMESURFACE" />
<xs:enumeration value="OBJECTLENGTH" />
</xs:restriction>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
</xs:element>
</xs:sequence>
<xs:attribute name="name" use="required">
<xs:annotation>
<xs:documentation>Nombre del objeto IFC.</xs:documentation>
</xs:annotation>
<xs:simpleType>
<xs:restriction base="xs:string">
<xs:enumeration value="PROJECT" />
<xs:enumeration value="SITE" />
<xs:enumeration value="BUILDING" />
<xs:enumeration value="TERRAIN_NATURAL_SURFACE" />
<xs:enumeration value="TERRAIN_CLEAR_SURFACE" />
<xs:enumeration value="LEFTDITCH" />
<xs:enumeration value="RIGHTDITCH" />
<xs:enumeration value="LEFT_FILL_SURFACE" />
<xs:enumeration value="RIGHT_FILL_SURFACE" />
<xs:enumeration value="LEFT_CUT_SURFACE" />
<xs:enumeration value="RIGHT_CUT_SURFACE" />
<xs:enumeration value="CUT" />
<xs:enumeration value="FILL" />
<xs:enumeration value="SUBGRADE" />
<xs:enumeration value="PAVEMENT" />
<xs:enumeration value="MEDIAN" />
<xs:enumeration value="BALLAST" />
<xs:enumeration value="SUBBALLAST" />
<xs:enumeration value="BLANKET" />
<xs:enumeration value="LEFT_EXT_RAILS" />
<xs:enumeration value="LEFT_INT_RAILS" />
<xs:enumeration value="RIGHT_INT_RAILS" />
<xs:enumeration value="RIGHT_EXT_RAILS" />
<xs:enumeration value="SLEEPERS" />
<xs:enumeration value="CANAL_SURFACE" />
<xs:enumeration value="LEFT_WALL" />
<xs:enumeration value="RIGHT_WALL" />
<xs:enumeration value="LEFT_FOOTING_WALL" />
<xs:enumeration value="RIGHT_FOOTING_WALL" />
</xs:restriction>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="split" type="xs:boolean" use="required">
<xs:annotation>
<xs:documentation>Indicador de si el objeto IFC se divide en piezas según las estaciones de definición del modelo.</xs:documentation>
</xs:annotation>
</xs:attribute>
</xs:complexType>
</xs:element>
</xs:sequence>
<xs:attribute name="version" default="1.0" type="xs:string" />
</xs:complexType>
</xs:element>
|

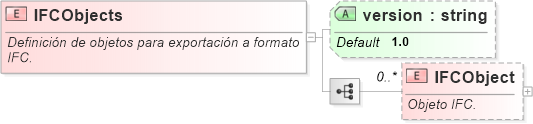

XSD Schema Diagram:
