Definition Type: Element
Name: HorizontalAlignment
Type: HorizontalAlignmentType
Containing Schema: 0_COMPLETO_ENG.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
Geometría en planta.

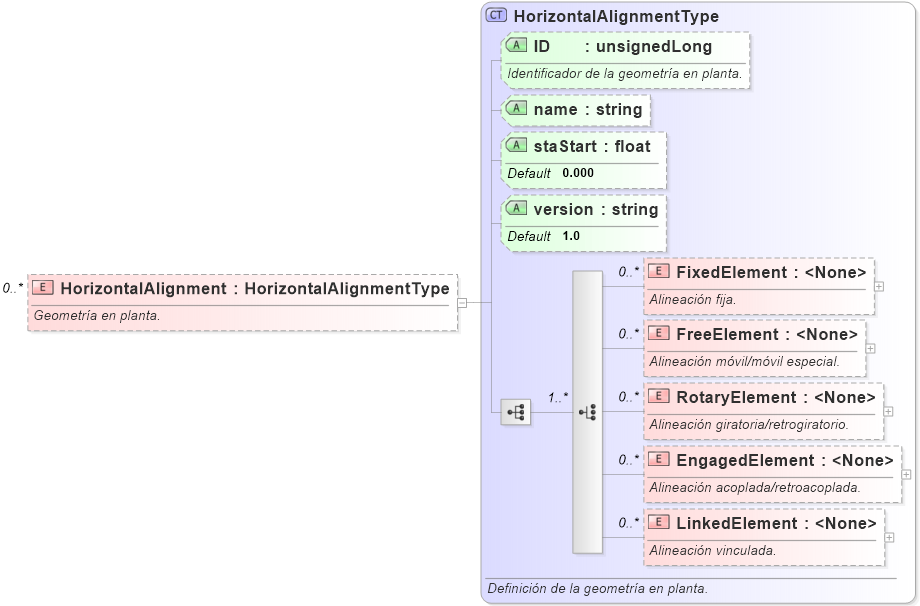

Collapse XSD Schema Diagram:
Drilldown into LinkedElement Drilldown into EngagedElement Drilldown into RotaryElement Drilldown into FreeElement Drilldown into FixedElement Drilldown into version Drilldown into staStart Drilldown into name Drilldown into ID Drilldown into HorizontalAlignmentTypeXSD Diagram of HorizontalAlignment
Collapse XSD Schema Code:
<xs:element name="HorizontalAlignment" type="HorizontalAlignmentType" minOccurs="0" maxOccurs="unbounded">
    <xs:annotation>
        <xs:documentation>Geometría en planta.</xs:documentation>
    </xs:annotation>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
FixedElement FixedElement 0 unbounded
FreeElement FreeElement 0 unbounded
RotaryElement RotaryElement 0 unbounded
EngagedElement EngagedElement 0 unbounded
LinkedElement LinkedElement 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
ID ID (Optional)
name name (Optional)
staStart staStart 0.000 (Optional)
version version 1.0 (Optional)
Collapse Derivation Tree:
