Documentation for CLIP - BIM - XML open interoperable format
Definition Type: Element
Name: GeologyData
Containing Schema: 0_COMPLETO_ENG.xsd
MinOccurs 0
MaxOccurs 1
Abstract
Documentation:
Datos referentes a la definición de la geología.

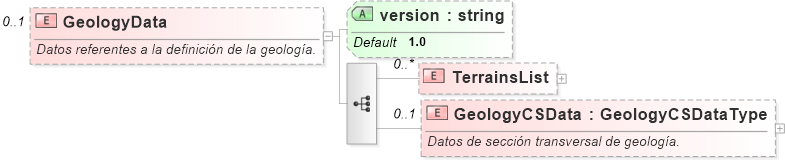

Collapse XSD Schema Diagram:
Drilldown into GeologyCSData Drilldown into TerrainsList Drilldown into versionXSD Diagram of GeologyData
Collapse XSD Schema Code:
<xs:element name="GeologyData" minOccurs="0" maxOccurs="1">
    <xs:annotation>
        <xs:documentation>Datos referentes a la definición de la geología.</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:sequence>
            <xs:element name="TerrainsList" minOccurs="0" maxOccurs="unbounded">
                <xs:complexType>
                    <xs:sequence>
                        <xs:element name="Terrain" type="TerrainType" minOccurs="0" maxOccurs="unbounded" />
                    </xs:sequence>
                    <xs:attribute name="version" default="1.0" type="xs:string" />
                </xs:complexType>
            </xs:element>
            <xs:element name="GeologyCSData" type="GeologyCSDataType" minOccurs="0" maxOccurs="1">
                <xs:annotation>
                    <xs:documentation>Datos de sección transversal de geología.</xs:documentation>
                </xs:annotation>
            </xs:element>
        </xs:sequence>
        <xs:attribute name="version" default="1.0" type="xs:string" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TerrainsList TerrainsList 0 unbounded
GeologyCSData GeologyCSData 0 1
Collapse Child Attributes:
Name Type Default Value Use
version version 1.0 (Optional)
