Documentation for CLIP - BIM - XML open interoperable format
Definition Type: Element
Name: GeologicMatCatalog
Type: GeologicMatCatalogType
Containing Schema: 0_COMPLETO_ENG.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
Material geológico de catálogo.

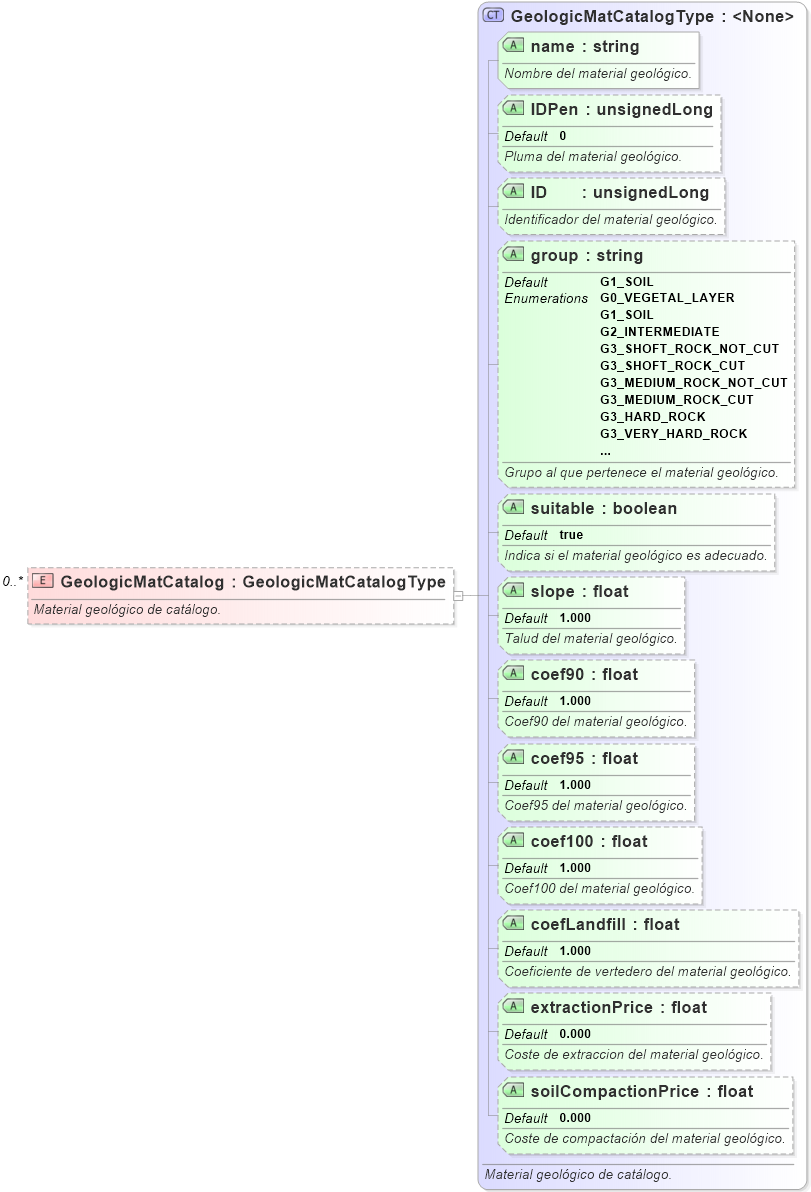

Collapse XSD Schema Diagram:
Drilldown into soilCompactionPrice Drilldown into extractionPrice Drilldown into coefLandfill Drilldown into coef100 Drilldown into coef95 Drilldown into coef90 Drilldown into slope Drilldown into suitable Drilldown into group Drilldown into ID Drilldown into IDPen Drilldown into name Drilldown into GeologicMatCatalogTypeXSD Diagram of GeologicMatCatalog
Collapse XSD Schema Code:
<xs:element name="GeologicMatCatalog" type="GeologicMatCatalogType" minOccurs="0" maxOccurs="unbounded">
    <xs:annotation>
        <xs:documentation>Material geológico de catálogo.</xs:documentation>
    </xs:annotation>
</xs:element>
Collapse Child Attributes:
Name Type Default Value Use
name name Required
IDPen IDPen 0 (Optional)
ID ID (Optional)
group group G1_SOIL (Optional)
suitable suitable true (Optional)
slope slope 1.000 (Optional)
coef90 coef90 1.000 (Optional)
coef95 coef95 1.000 (Optional)
coef100 coef100 1.000 (Optional)
coefLandfill coefLandfill 1.000 (Optional)
extractionPrice extractionPrice 0.000 (Optional)
soilCompactionPrice soilCompactionPrice 0.000 (Optional)
Collapse Derivation Tree:
