Definition Type: Element
Name: Catalogs
Containing Schema: 0_COMPLETO_ENG.xsd
MinOccurs 0
MaxOccurs 1
Abstract
Documentation:
Catálogos.
Collapse XSD Schema Diagram:

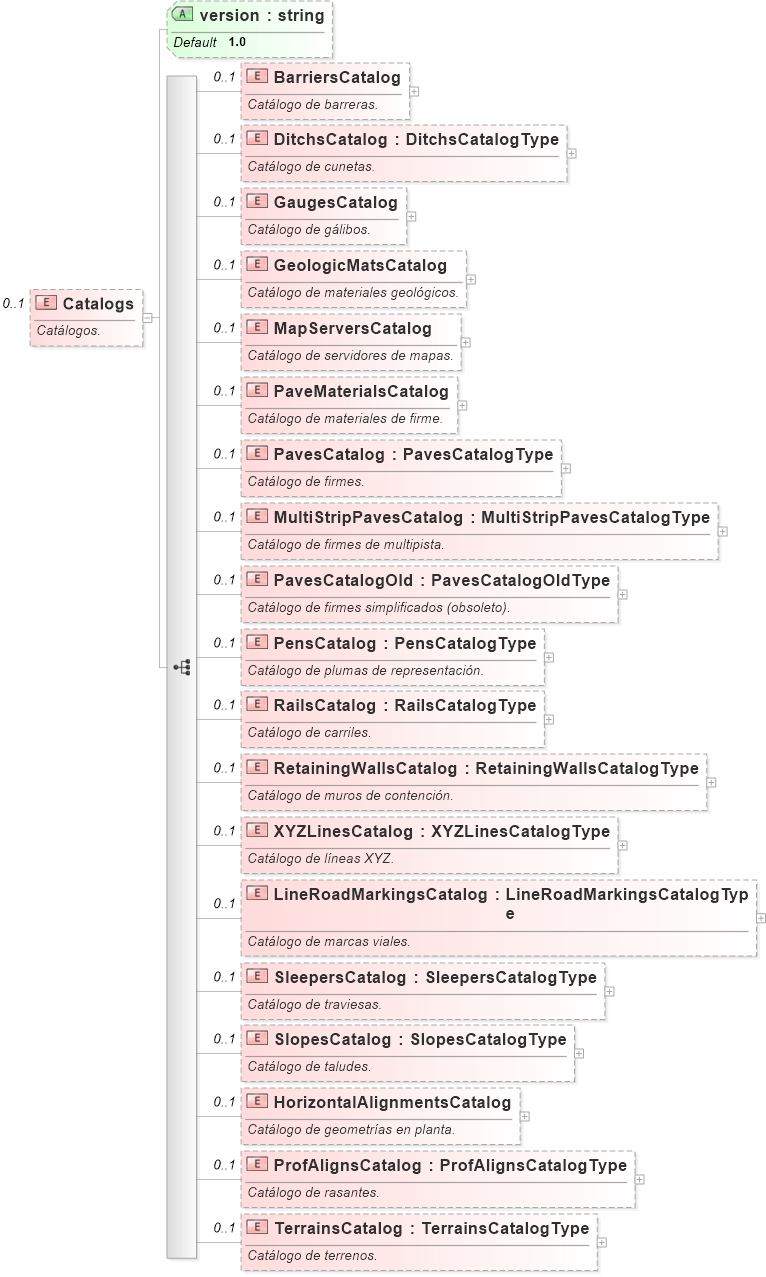

Drilldown into TerrainsCatalog Drilldown into ProfAlignsCatalog Drilldown into HorizontalAlignmentsCatalog Drilldown into SlopesCatalog Drilldown into SleepersCatalog Drilldown into LineRoadMarkingsCatalog Drilldown into XYZLinesCatalog Drilldown into RetainingWallsCatalog Drilldown into RailsCatalog Drilldown into PensCatalog Drilldown into PavesCatalogOld Drilldown into MultiStripPavesCatalog Drilldown into PavesCatalog Drilldown into PaveMaterialsCatalog Drilldown into MapServersCatalog Drilldown into GeologicMatsCatalog Drilldown into GaugesCatalog Drilldown into DitchsCatalog Drilldown into BarriersCatalog Drilldown into versionXSD Diagram of Catalogs
Collapse XSD Schema Code:
<xs:element name="Catalogs" minOccurs="0" maxOccurs="1">
    <xs:annotation>
        <xs:documentation>Catálogos.</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:sequence>
            <xs:element name="BarriersCatalog" minOccurs="0" maxOccurs="1">
                <xs:annotation>
                    <xs:documentation>Catálogo de barreras.</xs:documentation>
                </xs:annotation>
                <xs:complexType>
                    <xs:sequence>
                        <xs:element name="BarrierCatalog" type="BarrierCatalogType" minOccurs="0" maxOccurs="unbounded">
                            <xs:annotation>
                                <xs:documentation>Barrera de catálogo.</xs:documentation>
                            </xs:annotation>
                        </xs:element>
                    </xs:sequence>
                    <xs:attribute name="version" default="1.0" type="xs:string" />
                </xs:complexType>
            </xs:element>
            <xs:element name="DitchsCatalog" type="DitchsCatalogType" minOccurs="0" maxOccurs="1">
                <xs:annotation>
                    <xs:documentation>Catálogo de cunetas.</xs:documentation>
                </xs:annotation>
            </xs:element>
            <xs:element name="GaugesCatalog" minOccurs="0" maxOccurs="1">
                <xs:annotation>
                    <xs:documentation>Catálogo de gálibos.</xs:documentation>
                </xs:annotation>
                <xs:complexType>
                    <xs:sequence>
                        <xs:element name="GaugeCatalog" type="GaugeCatalogType" minOccurs="0" maxOccurs="unbounded">
                            <xs:annotation>
                                <xs:documentation>Gálibo de catálogo.</xs:documentation>
                                <xs:documentation>INFO++ http://www.tool.es/_web/DOC/CLIP/DLG_CatalogoGalibos.html ++INFO</xs:documentation>
                            </xs:annotation>
                        </xs:element>
                    </xs:sequence>
                    <xs:attribute name="version" default="1.0" type="xs:string" />
                </xs:complexType>
            </xs:element>
            <xs:element name="GeologicMatsCatalog" minOccurs="0" maxOccurs="1">
                <xs:annotation>
                    <xs:documentation>Catálogo de materiales geológicos.</xs:documentation>
                </xs:annotation>
                <xs:complexType>
                    <xs:sequence>
                        <xs:element name="GeologicMatCatalog" type="GeologicMatCatalogType" minOccurs="0" maxOccurs="unbounded">
                            <xs:annotation>
                                <xs:documentation>Material geológico de catálogo.</xs:documentation>
                            </xs:annotation>
                        </xs:element>
                    </xs:sequence>
                    <xs:attribute name="version" default="1.0" type="xs:string" />
                </xs:complexType>
            </xs:element>
            <xs:element name="MapServersCatalog" minOccurs="0" maxOccurs="1">
                <xs:annotation>
                    <xs:documentation>Catálogo de servidores de mapas.</xs:documentation>
                </xs:annotation>
                <xs:complexType>
                    <xs:sequence>
                        <xs:element name="MapServerCatalog" type="MapServerCatalogType" minOccurs="0" maxOccurs="unbounded">
                            <xs:annotation>
                                <xs:documentation>Servidor de mapas de catálogo.</xs:documentation>
                            </xs:annotation>
                        </xs:element>
                    </xs:sequence>
                    <xs:attribute name="version" default="1.0" type="xs:string" />
                </xs:complexType>
            </xs:element>
            <xs:element name="PaveMaterialsCatalog" minOccurs="0" maxOccurs="1">
                <xs:annotation>
                    <xs:documentation>Catálogo de materiales de firme.</xs:documentation>
                </xs:annotation>
                <xs:complexType>
                    <xs:annotation>
                        <xs:documentation>Catálogo de materiales de firme.</xs:documentation>
                    </xs:annotation>
                    <xs:sequence>
                        <xs:element name="PaveMaterialCatalog" type="PaveMaterialCatalogType" minOccurs="0" maxOccurs="unbounded">
                            <xs:annotation>
                                <xs:documentation>Material de firme de catálogo.</xs:documentation>
                            </xs:annotation>
                        </xs:element>
                    </xs:sequence>
                    <xs:attribute name="version" default="1.0" type="xs:string" />
                </xs:complexType>
            </xs:element>
            <xs:element name="PavesCatalog" type="PavesCatalogType" minOccurs="0" maxOccurs="1">
                <xs:annotation>
                    <xs:documentation>Catálogo de firmes.</xs:documentation>
                </xs:annotation>
            </xs:element>
            <xs:element name="MultiStripPavesCatalog" type="MultiStripPavesCatalogType" minOccurs="0" maxOccurs="1">
                <xs:annotation>
                    <xs:documentation>Catálogo de firmes de multipista.</xs:documentation>
                </xs:annotation>
            </xs:element>
            <xs:element name="PavesCatalogOld" type="PavesCatalogOldType" minOccurs="0" maxOccurs="1">
                <xs:annotation>
                    <xs:documentation>Catálogo de firmes simplificados (obsoleto).</xs:documentation>
                </xs:annotation>
            </xs:element>
            <xs:element name="PensCatalog" type="PensCatalogType" minOccurs="0" maxOccurs="1">
                <xs:annotation>
                    <xs:documentation>Catálogo de plumas de representación.</xs:documentation>
                </xs:annotation>
            </xs:element>
            <xs:element name="RailsCatalog" type="RailsCatalogType" minOccurs="0" maxOccurs="1">
                <xs:annotation>
                    <xs:documentation>Catálogo de carriles.</xs:documentation>
                </xs:annotation>
            </xs:element>
            <xs:element name="RetainingWallsCatalog" type="RetainingWallsCatalogType" minOccurs="0" maxOccurs="1">
                <xs:annotation>
                    <xs:documentation>Catálogo de muros de contención.</xs:documentation>
                </xs:annotation>
            </xs:element>
            <xs:element name="XYZLinesCatalog" type="XYZLinesCatalogType" minOccurs="0" maxOccurs="1">
                <xs:annotation>
                    <xs:documentation>Catálogo de líneas XYZ.</xs:documentation>
                </xs:annotation>
            </xs:element>
            <xs:element name="LineRoadMarkingsCatalog" type="LineRoadMarkingsCatalogType" minOccurs="0" maxOccurs="1">
                <xs:annotation>
                    <xs:documentation>Catálogo de marcas viales.</xs:documentation>
                </xs:annotation>
            </xs:element>
            <xs:element name="SleepersCatalog" type="SleepersCatalogType" minOccurs="0" maxOccurs="1">
                <xs:annotation>
                    <xs:documentation>Catálogo de traviesas.</xs:documentation>
                </xs:annotation>
            </xs:element>
            <xs:element name="SlopesCatalog" type="SlopesCatalogType" minOccurs="0" maxOccurs="1">
                <xs:annotation>
                    <xs:documentation>Catálogo de taludes.</xs:documentation>
                </xs:annotation>
            </xs:element>
            <xs:element name="HorizontalAlignmentsCatalog" minOccurs="0" maxOccurs="1">
                <xs:annotation>
                    <xs:documentation>Catálogo de geometrías en planta.</xs:documentation>
                </xs:annotation>
                <xs:complexType>
                    <xs:sequence>
                        <xs:element name="HorizontalAlignment" type="HorizontalAlignmentType" minOccurs="0" maxOccurs="unbounded">
                            <xs:annotation>
                                <xs:documentation>Geometría en planta.</xs:documentation>
                            </xs:annotation>
                        </xs:element>
                    </xs:sequence>
                    <xs:attribute name="version" default="1.0" type="xs:string" />
                </xs:complexType>
            </xs:element>
            <xs:element name="ProfAlignsCatalog" type="ProfAlignsCatalogType" minOccurs="0" maxOccurs="1">
                <xs:annotation>
                    <xs:documentation>Catálogo de rasantes.</xs:documentation>
                </xs:annotation>
            </xs:element>
            <xs:element name="TerrainsCatalog" type="TerrainsCatalogType" minOccurs="0" maxOccurs="1">
                <xs:annotation>
                    <xs:documentation>Catálogo de terrenos.</xs:documentation>
                </xs:annotation>
            </xs:element>
        </xs:sequence>
        <xs:attribute name="version" default="1.0" type="xs:string" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
BarriersCatalog BarriersCatalog 0 1
DitchsCatalog DitchsCatalog 0 1
GaugesCatalog GaugesCatalog 0 1
GeologicMatsCatalog GeologicMatsCatalog 0 1
MapServersCatalog MapServersCatalog 0 1
PaveMaterialsCatalog PaveMaterialsCatalog 0 1
PavesCatalog PavesCatalog 0 1
MultiStripPavesCatalog MultiStripPavesCatalog 0 1
PavesCatalogOld PavesCatalogOld 0 1
PensCatalog PensCatalog 0 1
RailsCatalog RailsCatalog 0 1
RetainingWallsCatalog RetainingWallsCatalog 0 1
XYZLinesCatalog XYZLinesCatalog 0 1
LineRoadMarkingsCatalog LineRoadMarkingsCatalog 0 1
SleepersCatalog SleepersCatalog 0 1
SlopesCatalog SlopesCatalog 0 1
HorizontalAlignmentsCatalog HorizontalAlignmentsCatalog 0 1
ProfAlignsCatalog ProfAlignsCatalog 0 1
TerrainsCatalog TerrainsCatalog 0 1
Collapse Child Attributes:
Name Type Default Value Use
version version 1.0 (Optional)
