Documentation for CLIP - BIM - XML open interoperable format
Definition Type: Element
Name: Breakline
Containing Schema: 0_COMPLETO_ENG.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract

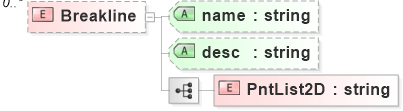

Collapse XSD Schema Diagram:
Drilldown into PntList2D Drilldown into desc Drilldown into nameXSD Diagram of Breakline
Collapse XSD Schema Code:
<xs:element name="Breakline" minOccurs="0" maxOccurs="unbounded">
    <xs:complexType>
        <xs:sequence>
            <xs:element name="PntList2D" type="xs:string" />
        </xs:sequence>
        <xs:attribute name="name" type="xs:string" />
        <xs:attribute name="desc" type="xs:string" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PntList2D PntList2D (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
name name (Optional)
desc desc (Optional)
