Documentation for CLIP - BIM - XML open interoperable format
Definition Type: Element
Name: BarrierCatalog
Type: BarrierCatalogType
Containing Schema: 0_COMPLETO_ENG.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
Barrera de catálogo.

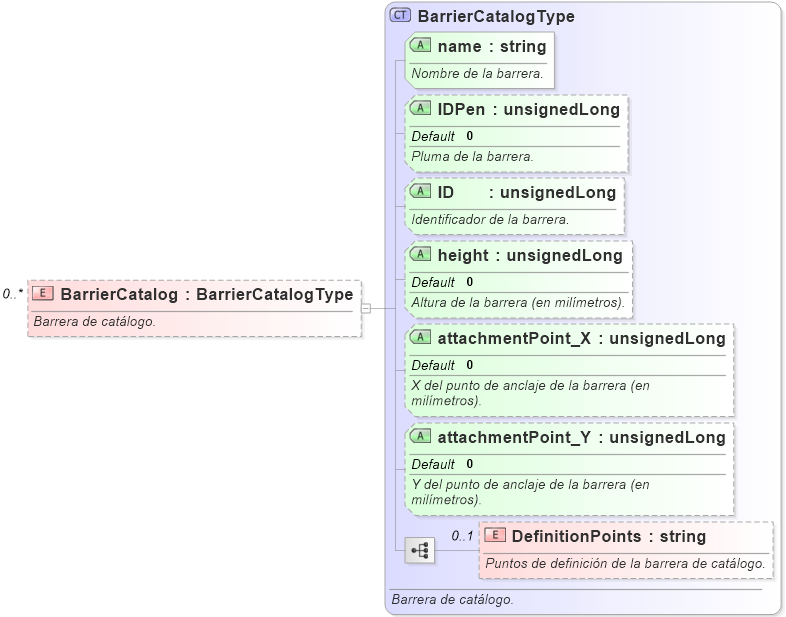

Collapse XSD Schema Diagram:
Drilldown into DefinitionPoints Drilldown into attachmentPoint_Y Drilldown into attachmentPoint_X Drilldown into height Drilldown into ID Drilldown into IDPen Drilldown into name Drilldown into BarrierCatalogTypeXSD Diagram of BarrierCatalog
Collapse XSD Schema Code:
<xs:element name="BarrierCatalog" type="BarrierCatalogType" minOccurs="0" maxOccurs="unbounded">
    <xs:annotation>
        <xs:documentation>Barrera de catálogo.</xs:documentation>
    </xs:annotation>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DefinitionPoints DefinitionPoints 0 1
Collapse Child Attributes:
Name Type Default Value Use
name name Required
IDPen IDPen 0 (Optional)
ID ID (Optional)
height height 0 (Optional)
attachmentPoint_X attachmentPoint_X 0 (Optional)
attachmentPoint_Y attachmentPoint_Y 0 (Optional)
Collapse Derivation Tree:
