Documentation for CLIP - BIM - XML open interoperable format
Definition Type: Element
Name: AxisOffsetsData
Containing Schema: 0_COMPLETO_ENG.xsd
Abstract
Documentation:
Datos referentes a los desplazamientos del eje.

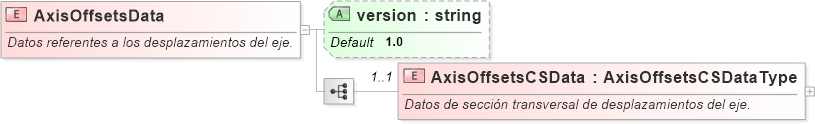

Collapse XSD Schema Diagram:
Drilldown into AxisOffsetsCSData Drilldown into versionXSD Diagram of AxisOffsetsData
Collapse XSD Schema Code:
<xs:element name="AxisOffsetsData">
    <xs:annotation>
        <xs:documentation>Datos referentes a los desplazamientos del eje.</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:sequence>
            <xs:element name="AxisOffsetsCSData" type="AxisOffsetsCSDataType" minOccurs="1" maxOccurs="1">
                <xs:annotation>
                    <xs:documentation>Datos de sección transversal de desplazamientos del eje.</xs:documentation>
                </xs:annotation>
            </xs:element>
        </xs:sequence>
        <xs:attribute name="version" default="1.0" type="xs:string" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AxisOffsetsCSData AxisOffsetsCSData 1 1
Collapse Child Attributes:
Name Type Default Value Use
version version 1.0 (Optional)
